HP ethernet 1GB 4-port 331FLR adapter
Khoảng giá: từ 490.000₫ đến 600.000₫
Hãng sản xuất: HBL
Tình trạng: Hàng chính hãng, đã qua sử dụng, mới 95%
Tồn kho: Hàng có sẵn
Network Processor : Broadcom BCM5719 chipset
Connector : RJ-45 (Four)
Data rate: Four 1GbE ports, each at 2 Gbps full duplex; 8 Gbps aggregate full duplex theoretical bandwidth. 10/100/1000 Mbps, Full-duplex
Data path: Four lane (x4) PCI Express, mechanically compatible with x8, and x16 PCI Express slots
Mô tả
HP ethernet 1GB 4-port 331FLR adapter
Tình trạng:
-
- Tồn kho: Hàng có sẵn
- Hàng chính hãng, tháo máy server
- Hàng đã qua sử dụng
- Hình thức gần như mới 95%,
- Nguyên bản, chưa sửa chữa
- Bảo hành: 01 tháng (mặc định), 06 tháng, 12 tháng (tùy chọn)
Thông số kỹ thuật :
Technical Specifications
| General Specifications | Network Processor | Broadcom BCM5719 chipset | |
| Data rate | Four 1GbE ports, each at 2 Gbps full duplex; 8 Gbps aggregate full duplex theoretical bandwidth. 10/100/1000 Mbps, Full-duplex | ||
| Data path | Four lane (x4) PCI Express, mechanically compatible with x8, and x16 PCI Express slots | ||
| On-board buffer memory | 276 MB | ||
| Bus type | PCI Express v2.0 (Gen 2 x4) (FlexibleLOM slot) | ||
| Interrupt levels | Automatically configured | ||
| Connector | RJ-45 (Four) | ||
| Cable distance | Up to 328 ft (100 m) | ||
| Wiring | Category 5 (CAT-5) or better twisted-pair cabling | ||
| Dimensions | 11.75 cm x 7.62 cm [4.626 in x 3.0 in (L x W)] (without bracket) | ||
| IEEE Compliance | 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az, 1588, 802.1as | ||
| Form factor | FlexibleLOM | ||
| Power and Environmental Specifications | Operating | Temperature | 32° to 131° F (0° to 55° C) |
| Humidity | 10% to 90% non-condensing | ||
| Non-operating | Temperature | -85° to 185° F (-65° to 85° C) | |
| Humidity | 5% to 95% non-condensing | ||
| Power requirement | 5.5W Maximum | ||
| Emissions classification | Class B | ||
| Agency approvals | USA | FCC Part 15 Class B | |
| Canada | ICES=–3, Issue 4 | ||
| Japan | VCCI V3 (2010.04) Class B | ||
| Korea | KN22 Class B, KN24 | ||
| Australia | EN55022:2006+A12007 class B | ||
| International | EN55022:2006 + A1:2007 Class B | ||
| EN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008 | |||
| RoHS Compliance | 6 of 6 | ||
| Safety | UL Mark (USA and Canada) | ||
| CE Mark | |||
| EN 60590-1 | |||
| Operating System Support | Microsoft Windows Server 2008 (32/64), Enterprise, Web, Embedded, and R2 Microsoft Windows HPC Server 2008 Microsoft certified miniport and teaming drivers Microsoft Windows 2008 Standard (32 and x64) Microsoft Windows 2008 Enterprise (32 and x64) Microsoft Windows Small Business Server 2011 (SBS V7) – base Microsoft Windows Small Business Server 2011 Essentials RHEL 5.7 x86 and AMD 64 & EM 64T RHEL 6.1 x86 and AMD 64 & EM 64T SLES10: x86 and AMD 64 & EM 64T SLES 11: x86 and AMD 64 & EM64T Solaris 10 VMware ESX/ESXi 4.1, ESXi 5.0 and ESXi 5.1 | ||

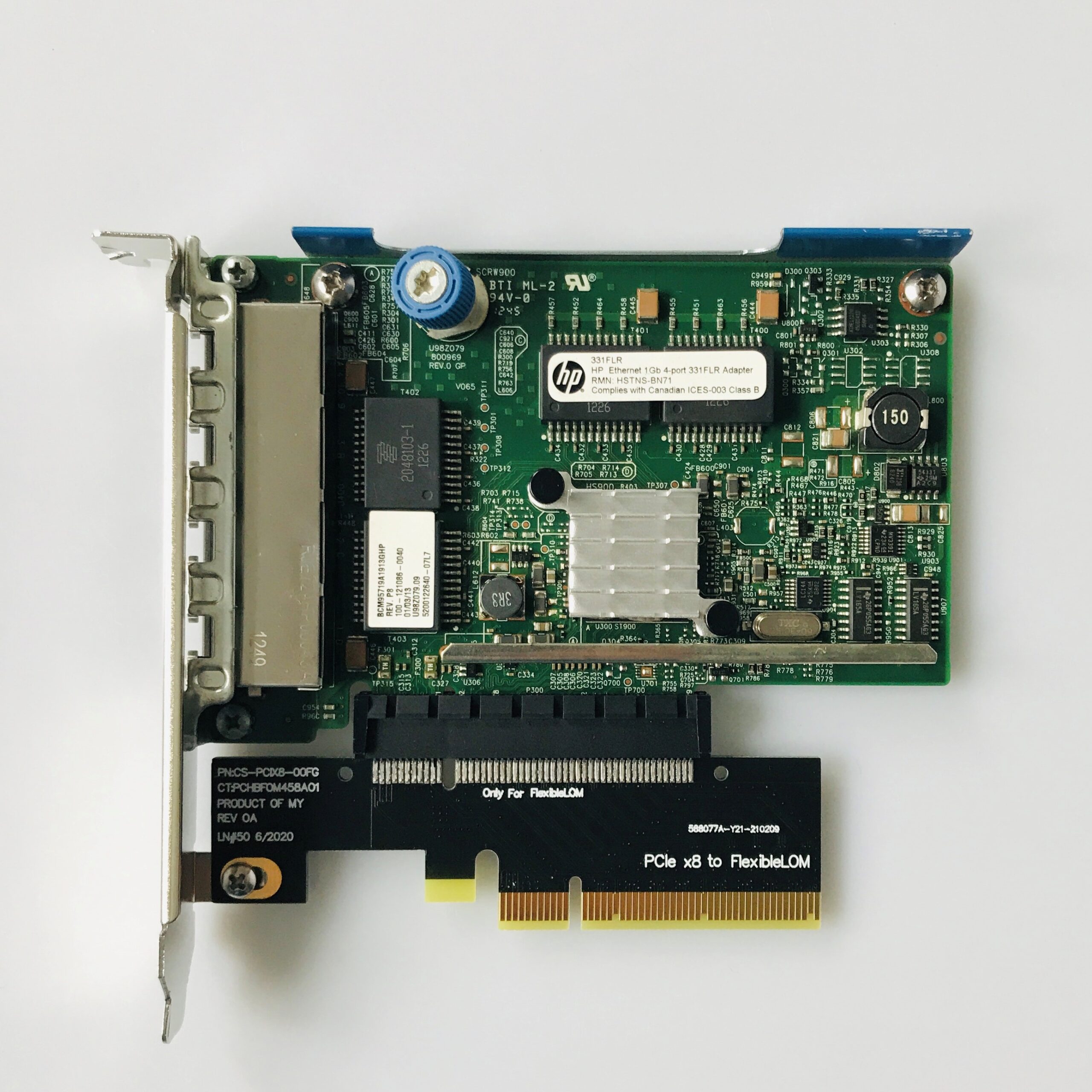

Hình ảnh tham khảo :
